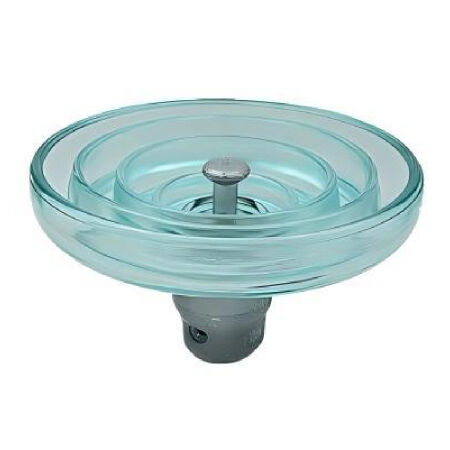

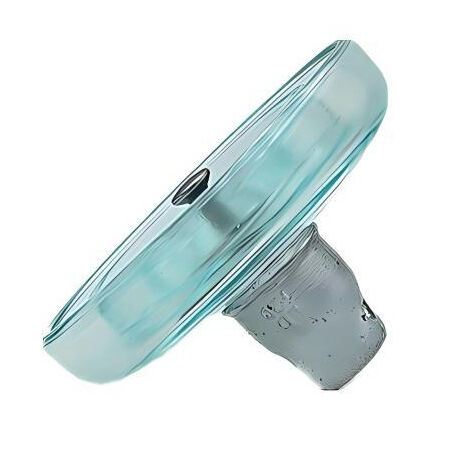

The 160KN Glass Insulator is a heavy-duty, high-performance electrical component engineered exclusively for ultra-high-voltage (UHV) and extra-high-voltage (EHV) power transmission systems. Designed to withstand extreme mechanical loads up to 160 kilonewtons (KN) while maintaining exceptional electrical insulation integrity, it serves as a critical structural and insulating barrier between high-capacity energized conductors and grounded infrastructure (e.g., UHV transmission towers, large-scale substation frameworks). Crafted from ultra-high-strength tempered borosilicate glass via precision manufacturing processes, this insulator combines industry-leading load-bearing capability, superior environmental resilience, and long-term operational stability—making it an indispensable choice for large-scale cross-regional power grids, intercontinental transmission projects, and heavy-duty energy infrastructure worldwide.
Its premium glass matrix undergoes a rigorous two-step tempering process: high-temperature fusion molding followed by controlled rapid cooling, which imbues the insulator with unmatched resistance to thermal shock, physical impact, and chemical corrosion from salt mist, acid rain, and industrial contaminants. The insulator’s smooth, anti-pollution surface repels dust and moisture buildup, drastically reducing the risk of surface flashover even in high-humidity or heavily polluted operating environments. What’s more, its reinforced structural design ensures reliable performance under extreme weather conditions, such as blizzards, typhoons, and heavy ice accumulation, a key requirement for UHV projects that span diverse geographic and climatic zones. With a service life exceeding 30 years and simplified visual inspection protocols, it delivers long-term cost efficiency and operational safety for grid operators managing high-stakes energy transmission networks.
 |
 |
 |
Since 1958, the total sales volume of Thunder Lightning brand tempered glass insulator has exceeded 100 million pieces, accounting for half of the country and one sixth of the world.
The glass insulator is composed of an iron cap, toughened glass parts and steel pin, which are combined with cement adhesive. Before assembling, the top of the steel pin is provided with a soft gasket, the inner cavity of the iron cap and the pin ends at the contact point with the cement adhesive are covered by tar. The gasket and tar are used to buff in case of damage when insulator facing thermal expansion and contraction. Toughened glass parts are used to insulate.
Glass insulators have the characteristics of small size, light weight, zero-value self-breaking, and easy detection; high mechanical strength; good arc resistance; good self-cleaning performance and not easy to age. In addition, the spraying material has the advantages of strong hydrophobicity, long-term resistance to pollution, low leakage current on the surface, and maintenance-free during operation; it is widely used in various circuits at home and abroad.
Disk suspension glass insulators are divided into standard type, anti-pollution type, DC type, , aerodynamic type, out-ribs type and ground wire type.
 |
 |
