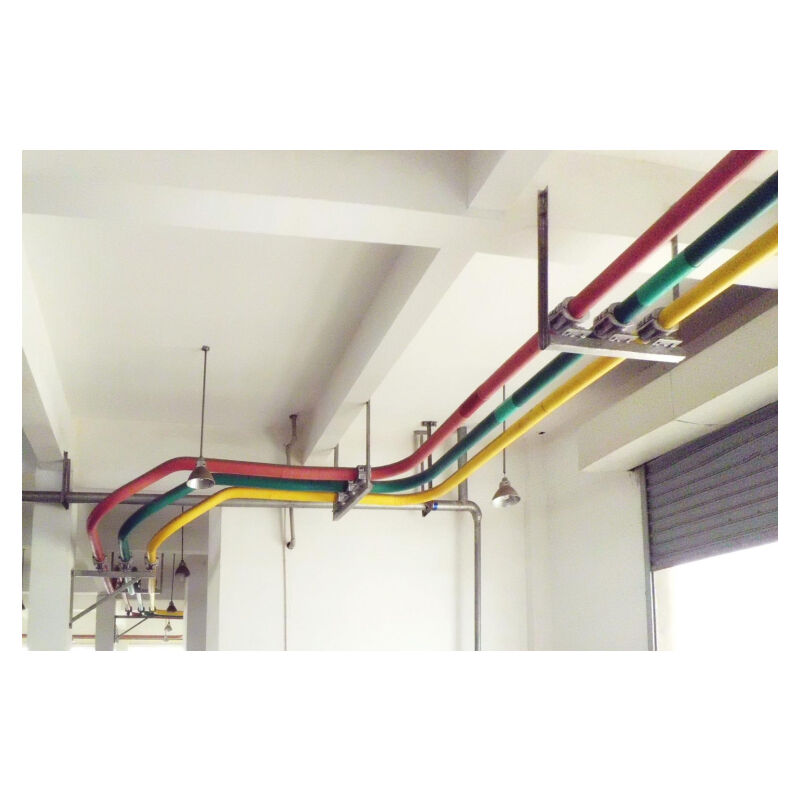

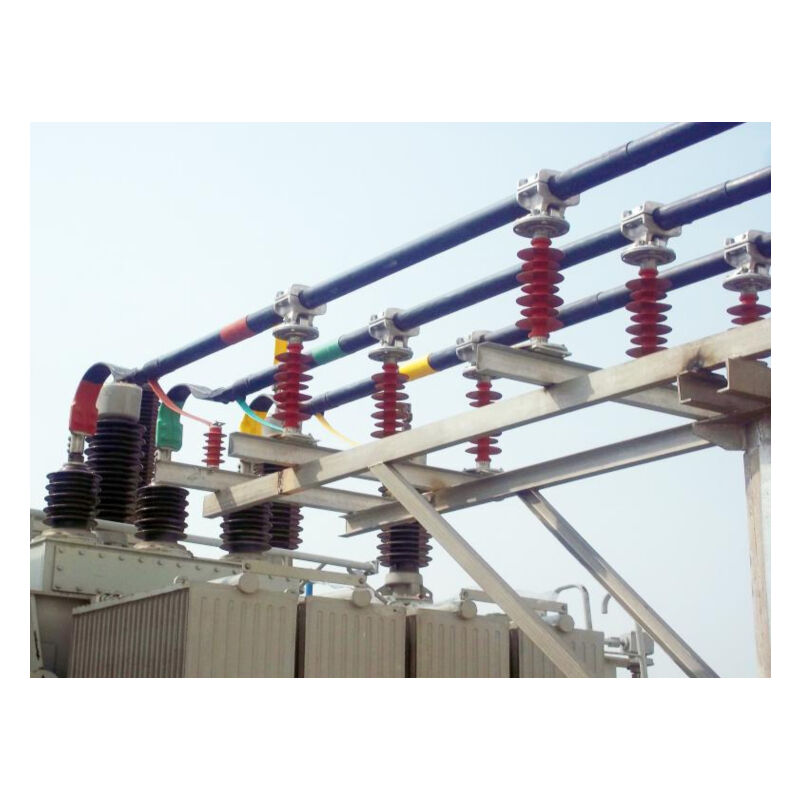

Insulated Busbar adopts the principle of capacitor voltage-sharing, which is intersecting and superimposing wind insulator on the conductor. The insulator is solidified by vacuum pouring epoxy resin special equipment, according to the balance field intensity of voltage classes covered conducting layer. The insulator has the balance of axial and radial direction field intensity, and also has extremely the insulation and resistance of short circuit property. The external composite material protect the main insulator, for which strengthen the electric property and mechanical strength. It mainly apply to power transmission and distribution, and connection between transformer low voltage bushing and switchgear or the switchgears’ connection in lower voltage system. The busbar, which instead of wall bushing and post insulator, has whole sealing and insulating property, no effect of environment, outstanding reliable property, long installment distance,high randomness, strong ability of shock resistance and can bear the big current of short circuit. It is also easy to install and no need to maintain.
Rated voltage: 12.5-40.5KV
Rated current: 630-8000A
Rated voltage: 12.5-40.5KV
Rated current: 630-8000A
 |
 |
Bushing is the current carrying and insulating equipment component, of which high-tension line through the wall, facility shell, connection between facility and facility earthing in the power system. Its application is very extensive. According to the usage, it is classified as Wall Bushing, Transformer Bushing, GIS Lead-out Bushing, Oil/Oil bushing, Oil/SF6 bushing and Low Voltage Heavy Current Bushing，Generator lead-out bushing, AC/DC bushings etc.
 |
 |
 |
Company Profile
Nanjing Electric was founded in 1936 and is the first high-voltage ceramic manufacturer in the history of China's electrical industry. It is also the headquarters of Baiyun Group in the East China region. Nanjing Electric has been rated as one of the top 500 mechanical industrialization enterprises in China and a first-class industrial enterprise in China. At present, the base covers an area of 19 hectares and employs 1000+ people. The industrial base was put into operation with equipment in 2015. Nanjing Electric specializes in developing glass insulators, composite insulators, and ceramic insulator products. In 1958, China developed the first Tempered Glass insulator and condenser Bushing, filling the domestic gap. The company's products are exported to more than 120 countries and regions around the world, such as the Americas, Australia, the Middle East, Southeast Asia, and more than 50% of countries and regions in Europe. The main customers are national power grid companies or local power grid companies in various countries. The domestic market has achieved full coverage. The company's products are widely used in national strategic projects, including 33 UHV projects above 800KV. Our company is the largest insulator supplier in national engineering.
Nanjing Electric International Co., Ltd., formerly known as the Overseas Business Unit of Nanjing Electric Technology Group, established an international trade company in 2021 based on the development strategy of the group. With insulators and sleeves as the two flagship exhibits, the company actively carries out resource and multi-party cooperation around common values and market views. On the way to the world, international trading companies will firmly step forward and work hard for the century old white clouds and the world's white clouds.
The international trade team participated in international power exhibitions held in countries each year such as Germany, the United States, Brazil, Saudi Arabia, Egypt, India, Italy, Saudi Arabia, Australia, the Philippines, Thailand, Spain, Mexico, etc; Track the progress of key power projects in various countries; Further promote the internationalization process of products.
Facing the future, the company will focus on the needs of national power construction, seize the opportunities of new power infrastructure, ultra-high voltage projects, the "the Belt and Road" construction, and the development of green energy. According to the strategic positioning of Baiyun Electric Group to build the company into the second headquarters of the group relying on the Yangtze River Delta, the company will build and develop a world-class insulator and related product R&D and production base, explore and build new products, new technologies, and new formats, Make new contributions to national power construction and global power development, and strive to become a century old enterprise.
